* This next-gen upgrade replaces our retired Court 350 & Chromabeams 350 models
The distinctive Chromabeams™ color technology utilized in our Orbit Series allows for the provision of tunable sports white light, alongside a full spectrum of RGB lights.
Grouping individual LEDs closely, while omitting plastic lenses, effectively eradicates glare and emits the smoothest output possible.

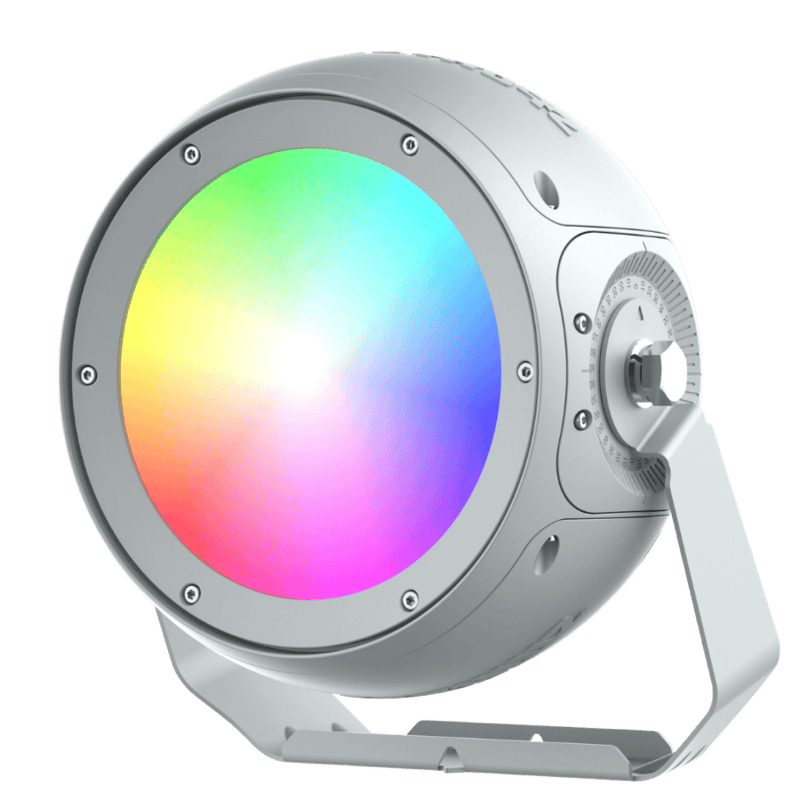

The versatile Orbit Series is perfect across all entertainment terrains. Whether evenly lighting a concert venue or an entertainment center, the Orbit Chromabeams Series is an unmatched solution. Delivering crystal-clear visibility, ensuring every move is vividly highlighted with 360° safe coverage. Using a symmetrical design, this patented LED light provides perfect precision lighting across any given area. Packing 10 patents, this unique fixture weighs a mere 26 pounds. Seamlessly blending durability, elegance, and superior light quality.
The most efficient color + broadcast white LED lights on the market. Order yours today!
The versatile Orbit Series is perfect across all entertainment terrains. Whether evenly lighting a concert venue or an entertainment center, the Orbit Chromabeams Series is an unmatched solution. Delivering crystal-clear visibility, ensuring every move is vividly highlighted with 360° safe coverage. Using a symmetrical design, this patented LED light provides perfect precision lighting across any given area. Packing 10 patents, this unique fixture weighs a mere 26 pounds. Seamlessly blending durability, elegance, and superior light quality.
The most efficient color + broadcast white LED lights on the market. Order yours today!
Designed with broadcast-standard entertainment in mind, this light is capable of it all. This efficient and lightweight RGB-AW series illuminates flawless LED color. The Orbit Chromabeams series is our most efficient venue light using our patented Chromabeams™ color technology:
Designed with broadcast-standard entertainment in mind. Using flawless RGBAW through our patented Chromabeams™ color technology:
| Series 2 | Series 3 | Series 4 | Series 5 | |
| Light & Optics: | ||||
| Lumen Output Range | 19,937 ~ 27,948 | 30,208 ~ 42,345 | 36,850 ~ 51,655 | 43,491 ~ 60,965 |
| Lumen-to-Watt Range | 100 ~ 140 lm/W | 100 ~ 140 lm/W | 87 ~ 122 lm/W | 87 ~ 122 lm/W |
| CRI/TLCI Options | 75/75 90/90 | 75/75 90/90 | 75/75 90/90 | 75/75 90/90 |
| Effective CCT Range | 4000K ~ 5700K | 4000K ~ 5700K | 4000K ~ 5700K | 4000K ~ 5700K |
| Full CCT Range | 1800K ~ 7000K | 1800K ~ 7000K | 1800K ~ 7000K | 1800K ~ 7000K |
| NEMA Options | 4/5/6/7 | 4/5/6/7 | 4/5/6/7 | 4/5/6/7 |
| Electrical: | ||||
| System Power | 200W | 300W | 400W | 500W |
| Frequency Range | 45~66 Hz | 45~66 Hz | 45~66 Hz | 45~66 Hz |
| Input Voltage | 110V ~ 277V | 110V ~ 277V | 110V ~ 277V | 110V ~ 277V |
| DC Voltage | 48V | 48V | 48V | 48V |
| Current Range | 3.0A MAX @ 100VAC | 3.0A MAX @ 100VAC | 5.0A MAX @ 100VAC | 5.0A MAX @ 100VAC |
| Power Factor | 0.99 @ 115V / 0.94 @ 277V | 0.99 @ 115V / 0.94 @ 277V | 0.99 @ 115V / 0.95 @ 277V | 0.99 @ 115V / 0.95 @ 277V |
| THD | <20% | <20% | <20% | <20% |
| Inrush Current | <35A | <35A | <50A | <50A |
| Electrical Certifications | FCC, CE, ETL, IK08, CB, KC, UL 924 | FCC, CE, ETL, IK08, CB, KC, UL 924 | FCC, CE, ETL, IK08, CB, KC, UL 924 | FCC, CE, ETL, IK08, CB, KC, UL 924 |
| Surge Protection | L-L 6kV ~ L-PE 10kV | L-L 6kV ~ L-PE 10kV | L-L 6kV ~ L-PE 10kV | L-L 6kV ~ L-PE 10kV |
| Over Temperature Protection | Automatic Recovery | Automatic Recovery | Automatic Recovery | Automatic Recovery |
| Over Voltage Protection | Recovery After Power Cycle | Recovery After Power Cycle | Recovery After Power Cycle | Recovery After Power Cycle |
| Over Load Protection | Automatic Recovery | Automatic Recovery | Automatic Recovery | Automatic Recovery |
| Construction | ||||
| Operating Temperature Range | -40°C to +50°C | -40°C to +50°C | -40°C to +50°C | -40°C to +50°C |
| Usage Environments | Indoor, Outdoor | Indoor, Outdoor | Indoor, Outdoor | Indoor, Outdoor |

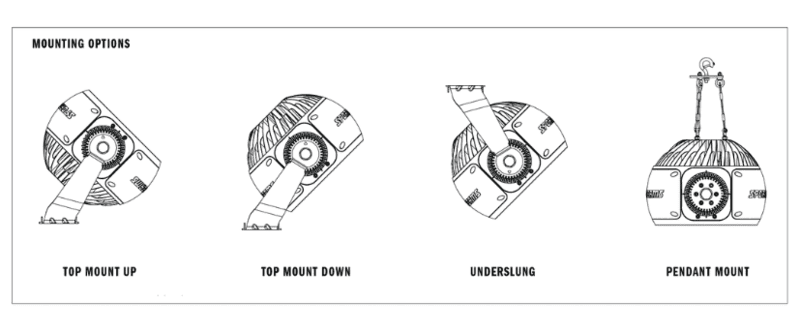

| Mounting Options | Pedestal, Pendant | Pedestal, Pendant | Pedestal, Pendant | Pedestal, Pendant |
| Environmental Certifications | ROHS, FCC, Salt Spray | ROHS, FCC, Salt Spray | ROHS, FCC, Salt Spray | ROHS, FCC, Salt Spray |
| Vibration | ANSI C136.31-2010 3G | ANSI C136.31-2010 3G | ANSI C136.31-2010 3G | ANSI C136.31-2010 3G |
| Effective Projected Area (EPA) | 1.28 (FT²) with or without visor | 1.28 (FT²) with or without visor | 1.28 (FT²) with or without visor | 1.28 (FT²) with or without visor |
| Approximate Weight | 26lbs | 26lbs | 26lbs | 26lbs |
| NEMA | TEMP | CRI | SERIES 2 | SERIES 3 | SERIES 4 | SERIES 5 |
| 4 | 4000K | 75 | 27,948 | 42,345 | 51,655 | 60,965 |
| 4 | 5700K | 75 | 27,948 | 42,345 | 51,655 | 60,965 |
| 4 | 4000K | 90 | 22,868 | 34,648 | 42,266 | 49,883 |
| 4 | 5700K | 90 | 22,868 | 34,648 | 42,266 | 49,883 |
| 5 | 4000K | 75 | 27,470 | 41,621 | 50,772 | 59,923 |
| 5 | 5700K | 75 | 27,470 | 41,621 | 50,772 | 59,923 |
| 5 | 4000K | 90 | 22,476 | 34,054 | 41,541 | 49,028 |
| 5 | 5700K | 90 | 22,476 | 34,054 | 41,541 | 49,028 |
| 6 | 4000K | 75 | 26,487 | 40,132 | 48,955 | 57,779 |
| 6 | 5700K | 75 | 26,487 | 40,132 | 48,955 | 57,779 |
| 6 | 4000K | 90 | 21,672 | 32,836 | 40,055 | 47,275 |
| 6 | 5700K | 90 | 21,672 | 32,836 | 40,055 | 47,275 |
| 7 | 4000K | 75 | 24,368 | 36,921 | 45,038 | 53,156 |
| 7 | 5700K | 75 | 24,368 | 36,921 | 45,038 | 53,156 |
| 7 | 4000K | 90 | 19,937 | 30,208 | 36,850 | 43,491 |
| 7 | 5700K | 90 | 19,937 | 30,208 | 36,850 | 43,491 |
| SERIES 2 | SERIES 3 | SERIES 4 | SERIES 5 |
| 2064lm | 3128lm | 3781lm | 4562lm |
| 3440lm | 5212lm | 6507lm | 7815lm |
| 1165lm | 1765lm | 2206lm | 2647lm |
This fixture is covered by one or more of the certifications listed

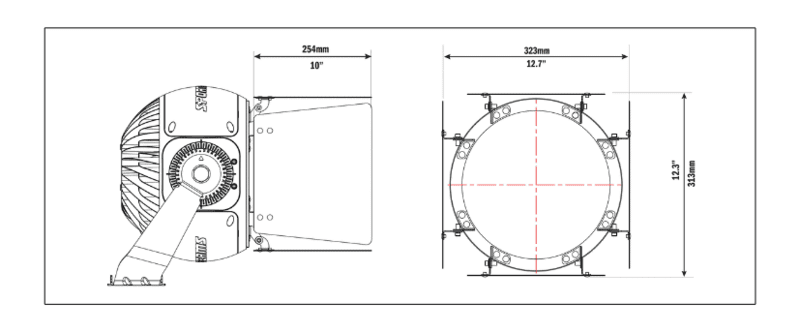

Barn Door attachments help shape and control the fixture’s beam for more precise light placement. They are useful for limiting spill light, reducing glare, and keeping illumination focused where it is needed most.

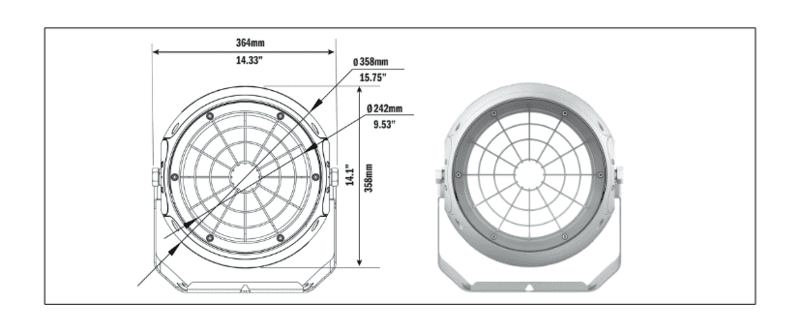

The IK10 Cage adds an extra layer of physical protection to the Orbit fixture in environments where impact resistance matters. It helps shield the optic and fixture face while maintaining fixture performance in demanding applications.

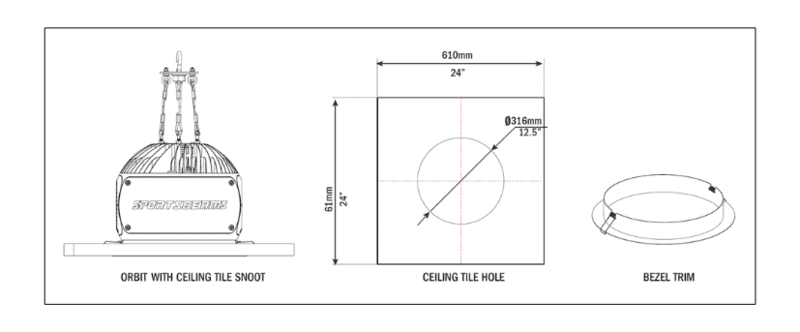

The Ceiling Tile option allows the Orbit fixture to integrate more cleanly into finished ceiling applications. It creates a more polished architectural appearance while adapting the fixture for indoor spaces that require a built-in look.

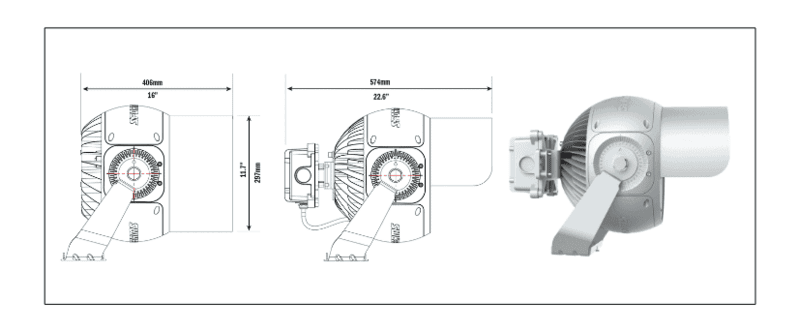

Snoot options help extend and narrow the fixture’s light output for tighter beam control. Available in 180° half snoot and 360° full round snoot configurations, they can be selected based on coverage needs while helping reduce spill light and support dark-sky-friendly applications when needed outdoors.
