The distinctive technology utilized in our stadium lighting allows for the provision of tunable sports white light, alongside a full spectrum of RGB lights.

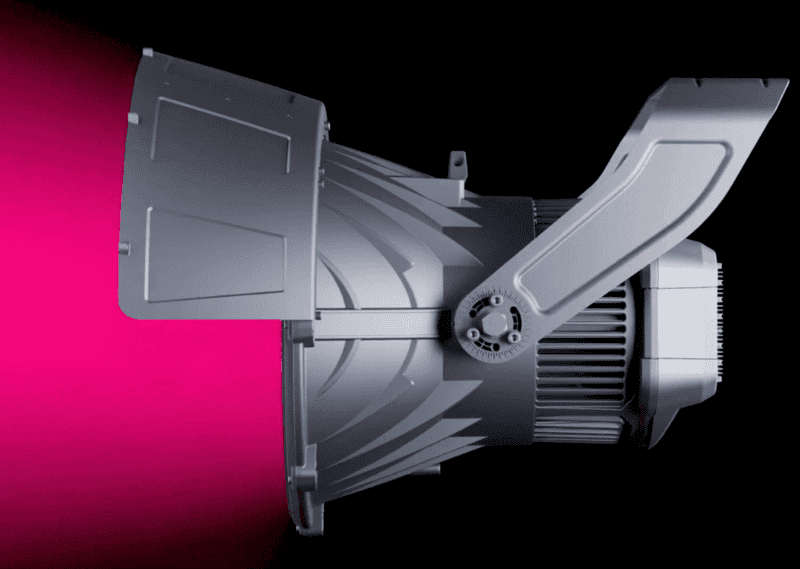

Ultranova Chromabeams is the largest and most powerful fixture in the Chromabeams lineup. Engineered for large-scale venues that demand maximum output, precision control, and long-term reliability.
The Ultranova seamlessly shifts from broadcast-quality white light to bold, immersive color effects using a single, integrated fixture. Its patented single-glass optic, advanced thermal design, and zero-plastic light path ensure uniform illumination, reduced glare, and consistent performance in the most demanding environments. Built for stadiums, high-mast installations, and architectural applications, Ultranova combines extreme power with intelligent control—setting a new standard for large-format sports and venue lighting.
Ultranova Chromabeams is the largest and most powerful fixture in the Chromabeams lineup. Engineered for large-scale venues that demand maximum output, precision control, and long-term reliability.
The Ultranova seamlessly shifts from broadcast-quality white light to bold, immersive color effects using a single, integrated fixture. Its patented single-glass optic, advanced thermal design, and zero-plastic light path ensure uniform illumination, reduced glare, and consistent performance in the most demanding environments. Built for stadiums, high-mast installations, and architectural applications, Ultranova combines extreme power with intelligent control—setting a new standard for large-format sports and venue lighting.
| LIGHT & OPTICS | |
| LUMEN OUTPUT RANGE | 200012~ 275000 |
| LUMEN-TO-WATT RANGE | 91 ~ 125 LM/W |
| CRI/TLC OPTIONS | 75/75 or 95+/95+ |
| CCT OPTIONS | 4000K ~ 5700K |
| NEMA OPTIONS | 2/3/4/5 |
| ELECTRICAL | |
| SYSTEM POWER | 2200W |
| FREQUENCY RANGE | 45~66 Hz |
| INPUT VOLTAGE | 240V ~ 480V |
| DC VOLTAGE | 51V |
| CURRENT RANGE | 8.0A @ 277V |
| POWER FACTOR | >0.9 |
| THD | <20% |
| INPUT CURRENT | <35A |
| ELECTRICAL CERTIFICATIONS | FCC, CE, ETL, CB, SAA, UL 924 |
| SURGE PROTECTION | L-N 4kV ~ L-N-PE 6kV |
| OVER TEMPERATURE PROTECTION | AUTOMATIC RECOVERY |
| OVER VOLTAGE PROTECTION | RECOVERY AFTER POWER CYCLE |
| OVER LOAD PROTECTION | AUTOMATIC RECOVERY |
| CONSTRUCTION | |
| OPERATING TEMPERATURE RANGE | -40°C TO +50°C |
| USAGE ENVIRONMENTS | INDOOR, OUTDOOR |
| MOUNTING OPTIONS | PEDESTAL, PENDANT |
| ENVIRONMENTAL CERTIFICATIONS | RoHS, FCC, SALT SPRAY (MIL-STD-810) |
| VIBRATION | ANSI C136.31-2010 3G |
| EFFECTIVE PROJECTED AREA (EPA) | 3.59(ft) WITH OR WITHOUT VISOR |
| APPROXIMATE WEIGHT | 75 LBS |
| NOTES: | |
| (1) Specifications are subject to change without notice (2) Values are +/- 5% | (3) Values are +/- 4% when fixture is operated at 25°C ambient (4) Weight may vary depending on mounting bracket |
