Sportsbeams patented fixtures deliver unprecedented sports white light. Our single-glass optic Supernova fixture is equipped with LEDs rated for 120,000+ hours of operation.

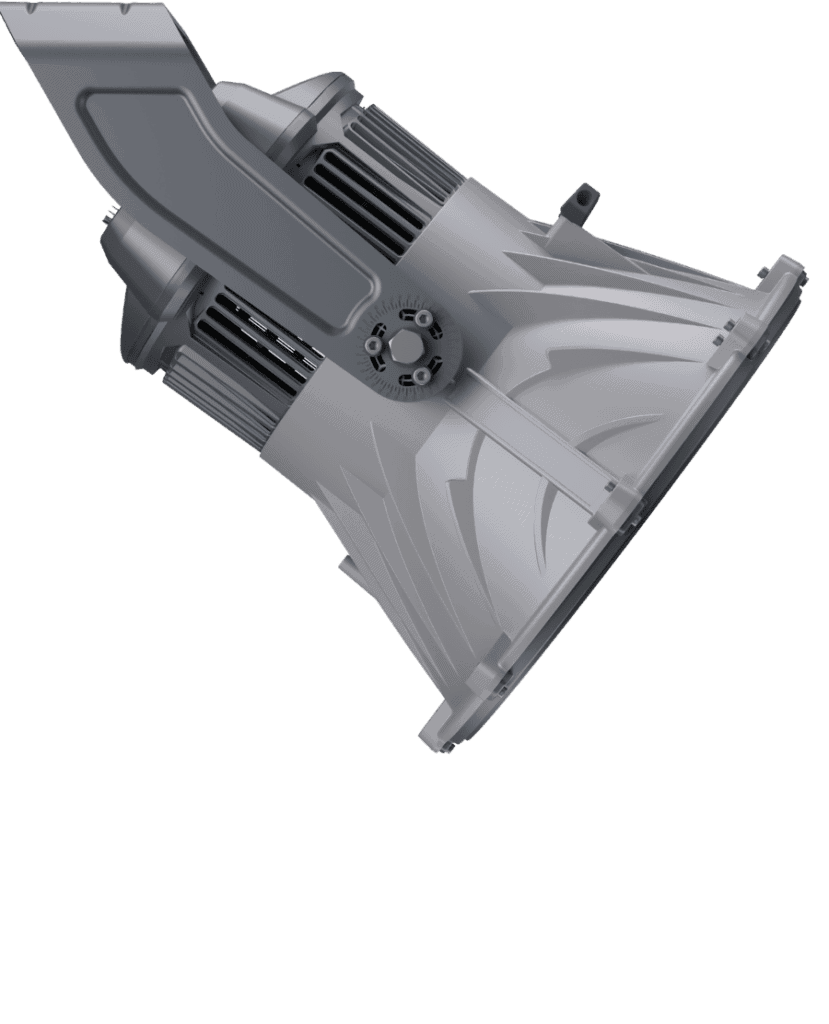

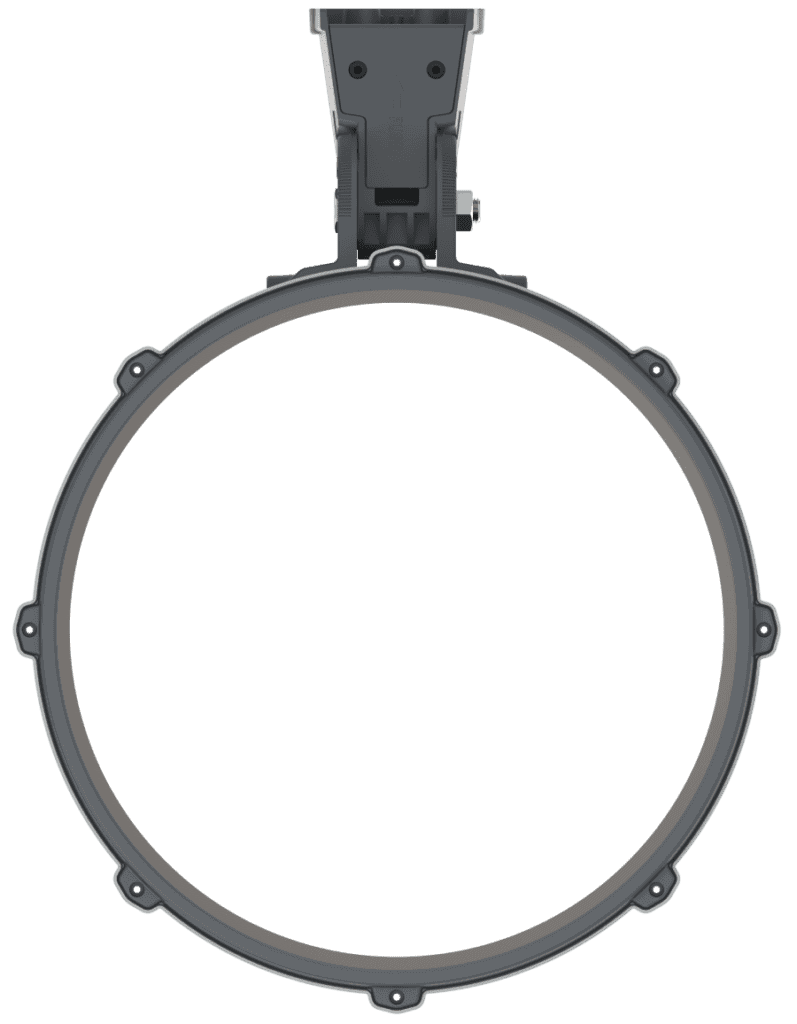

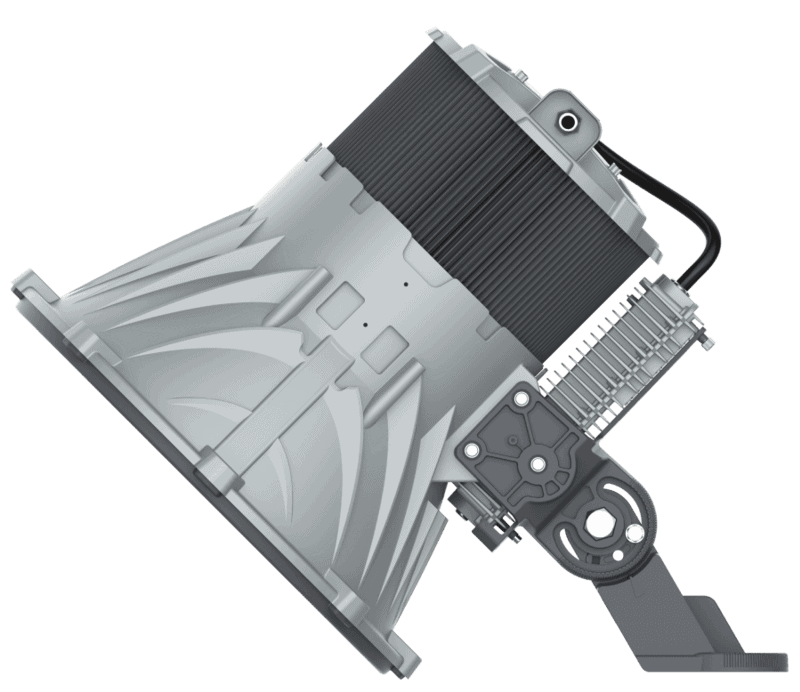

Meet the Supernova, a luminary titan specifically crafted for expansive stadiums, serving both sports and non-sports events. Part of our Monobeam series, this fixture emits a potent, crisp white light, ideal for those seeking unadulterated illumination and cost-effectiveness. It’s the preferred choice for stadiums requiring clear, sharp lighting without the need for vibrant color options, making it a more economical alternative to the Chromabeams Supernova. Whether spotlighting the intricate tactics of a football game or enhancing a musical concert, the Supernova fixture ensures that every detail is visible, offering viewers and players a superior visual experience. This model symbolizes our commitment to delivering high-quality, efficient, and economical lighting solutions to large-scale venues worldwide.
Meet the Supernova, a luminary titan specifically crafted for expansive stadiums, serving both sports and non-sports events. It’s the preferred choice for professional and K-12 stadiums alike. Perfect for those requiring clear, sharp lighting without the need for vibrant color options, making it a more economical alternative to the Chromabeams Supernova.
| LIGHT & OPTICS | |
| LUMEN OUTPUT RANGE | 121271 ~ 167977 |
| LUMEN-TO-WATT RANGE | 92 ~ 124 LM/W |
| CRI/TLC OPTIONS | 75/75, 80/75, 90/85 |
| CCT OPTIONS | 2200K ~ 6000K |
| NEMA OPTIONS | 3/4/5/6/7 |
| ELECTRICAL | |
| SYSTEM POWER | 1410W |
| FREQUENCY RANGE | 45~66 Hz |
| INPUT VOLTAGE | 277V ~ 500V |
| DC VOLTAGE | 51V |
| CURRENT RANGE | 5.8A |
| POWER FACTOR | 0.9 @ 277V |
| THD | <15% |
| INRUSH CURRENT | <80A |
| ELECTRICAL CERTIFICATIONS | FCC, CE, ETL, IK-08, CB, KC, UL 924 |
| SURGE PROTECTION | L-N 5.5kV ~ L-N-PE 10kV |
| OVER TEMPERATURE PROTECTION | AUTOMATIC RECOVERY |
| OVER VOLTAGE PROTECTION | RECOVERY AFTER POWER CYCLE |
| OVER LOAD PROTECTION | AUTOMATIC RECOVERY |
| CONSTRUCTION | |
| OPERATING TEMPERATURE RANGE | -50°C TO +50°C |
| USAGE ENVIRONMENTS | INDOOR, OUTDOOR |
| MOUNTING OPTIONS | PEDESTAL, PENDANT |
| ENVIRONMENTAL CERTIFICATIONS | RoHS, FCC, SALT SPRAY (MIL-STD-810) |
| EFFECTIVE PROJECTED AREA (EPA) | 3.59(ft) WITH OR WITHOUT VISOR |
| APPROXIMATE WEIGHT | 75 LBS |
| NOTES: | |
| (1) Specifications are subject to change without notice (2) Values are +/- 5% | (3) Values are +/- 4% when fixture is operated at 25°C ambient (4) Weight may vary depending on mounting bracket |
